KEWO PV800 Series Solar Pump Inverters
Solar pump drives advantages:
Kewo PV800 series solar pump drive is positioned in environmental-friendly and economical PV market, the product is applicable to PV pumping system, replaces water storage with electric storage and needs no battery modules. The direct current generated by solar modules is input to the inverter and then converted into the alternating current to drive various pumps directly. Additionally, the output frequency is adjustable in real time according to sunlight intensity change.

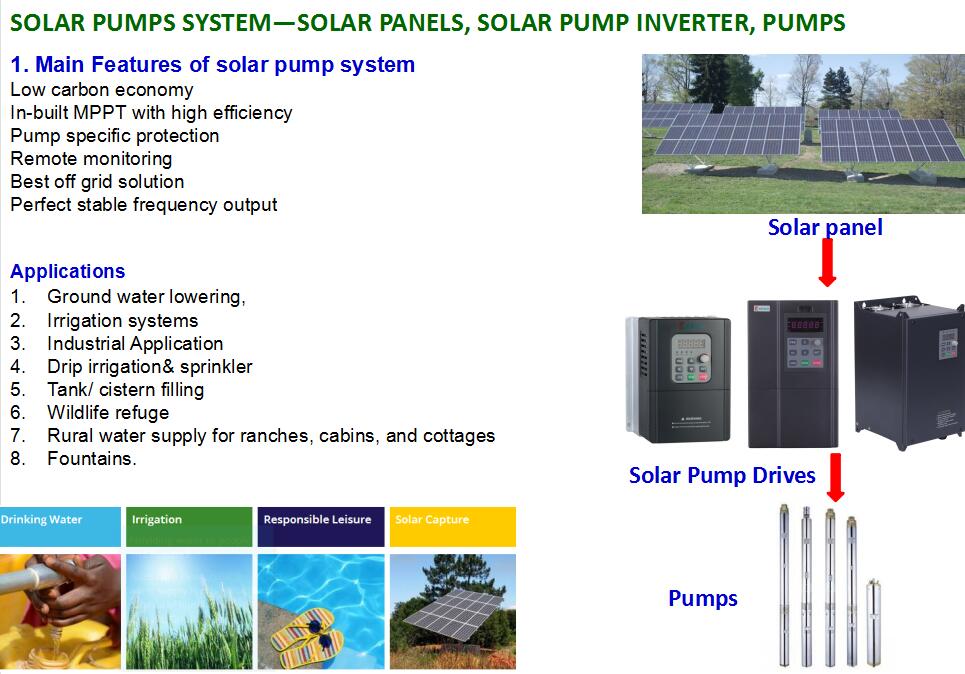

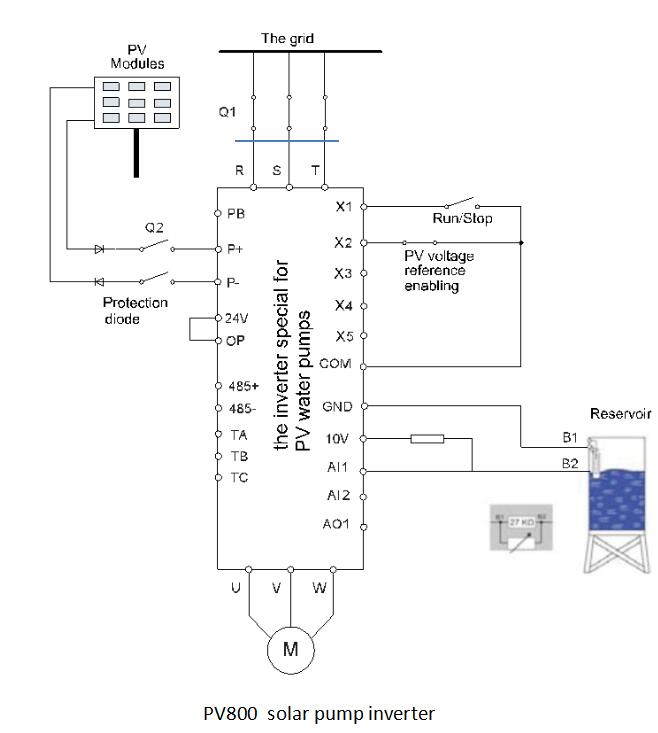

Fully automatic system using variable speed drive compatible with AC, 3-phase, submersible and surface mount pumps, and high efficiency PMSM Pumps. The system is composed of a PV generator, a pump and a solar pump drive. Based on the design philosophy that it is more efficient to store water rather than electricity, there is no energy storing device such as storage battery in the system. The system is prepared to be combined with a elevated water storage,
e.g. water tower or an uphill tank installation.
Specification:
150 to 400VDC input, 220-240VAC output, 0.75 to 3.7kw
350-8000VDC input, 380-480VAC output, 0.75 to 355kw

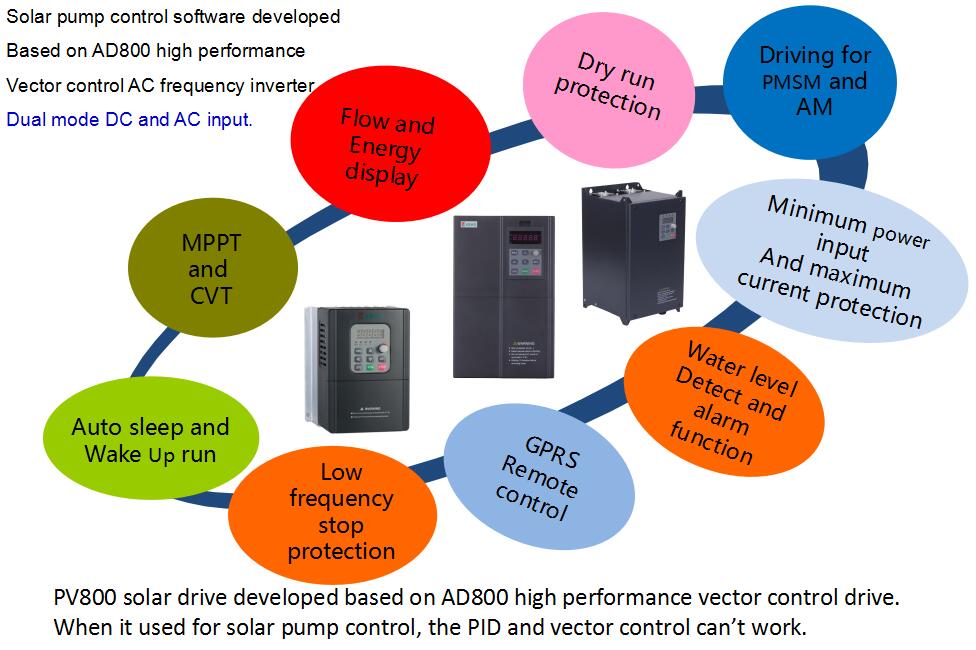

Descriptions and Features
1. Built-in MPPT function, Maximum power point tracking functionality ensures that you get the most power output possible from your solar panel and maximizes the performance of your pump throughout the day.
2. Built-in flow measurement and sensorless flow calculation. And easy to get how much energy generated by this system with generated energy and calculating
3. Advanced function automatic start and stop of the drive when there is enough power available. ( auto/manual)
4. Multiple pump motors with a single drive control standard asynchronous motors as well as more efficient permanent magnet synchronous motors. (PMSM)
5. Best off-grid solution Where electricity is very erratic and unpredictable, farmers need not to depend on grid electricity for their agricultural requirements
6. Remote monitoring With the addition of optional GPRS modules you can monitor and configure drive and application parameters from anywhere
via Modbus RTU
Protection features
It is provide kinds of protection function for pumps and inverters such as Dry run protection (under load protection) , High voltage surge, Low input voltage, Open motor circuit, Short circuit, Over heat, Earth fault, Phase missing, lowest running, water tank level...
KEWO sun great series solar pump drive main Features
Hardware design
Solar pump inverter developed based on PV800 high performance vector control AC inverter with software MPPT and hardware updated.The PV800 vector control inverter is renowned for his excellent hardware deign and powerful software performance, long service life design.
Excellent hardware design .

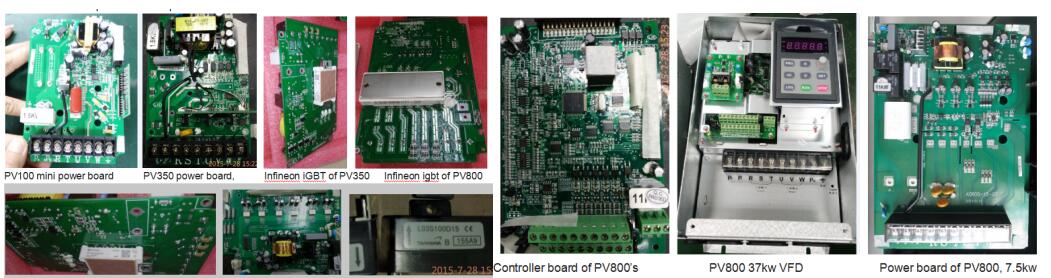

Latest generation Infineon of Fuji IGBT using ( Fuji brand for back up)
Hot temperature working available design.
Good quality components selecting
Independent cooling duct for lower temperature rising.
Models list and specification
Recommended MPPT voltage range |
Vmpp 131 to 350 VDC for 1S (80V to 350VDC input, 3PH 110 to 220VAC output) Vmpp 280 to 375VDC for 2S ( 150V to 350VDC input, 3PH 220 to 240VAC output) Vmpp 486 to 750 VDC for 4T ( 250V to 800VDC input, 3PH 380 to 460VAC output) |
Recommended input voltage (Voc and Vmmp) |
Voc 180(VDC), Vmpp 155(VDC) for 1S model or 110V AC pumps Voc 355(VDC), Vmpp 310(VDC) for 2S model or 220V AC pumps Voc 620(VDC), Vmpp 540(VDC) for 4T model or 380V AC pumps |

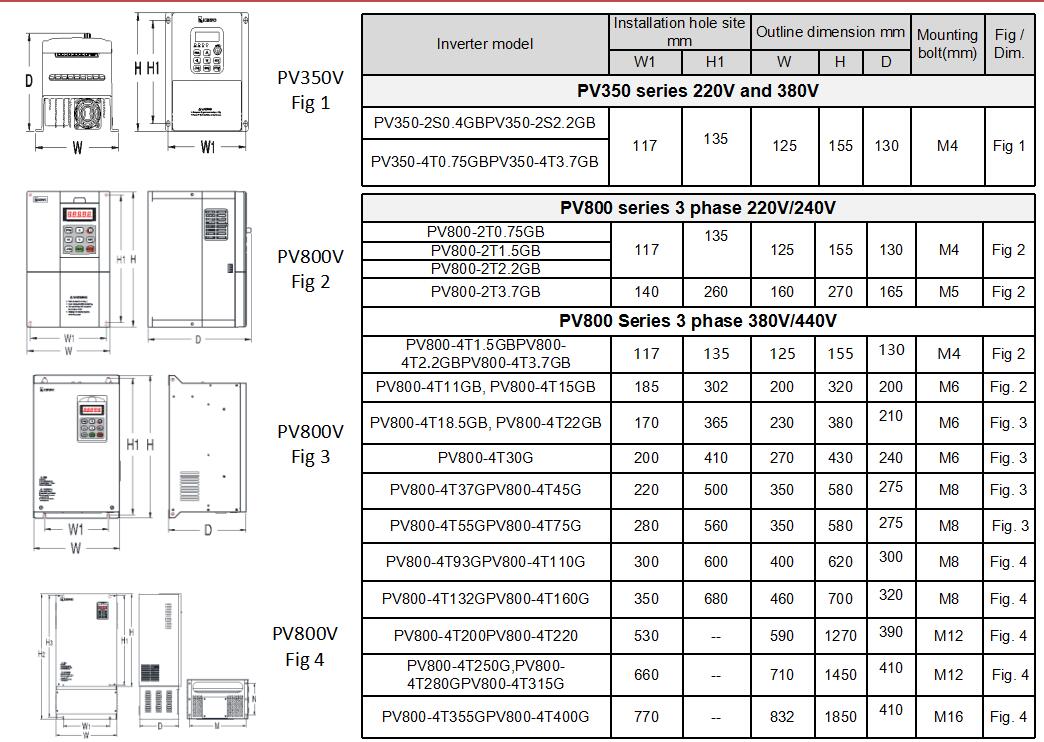

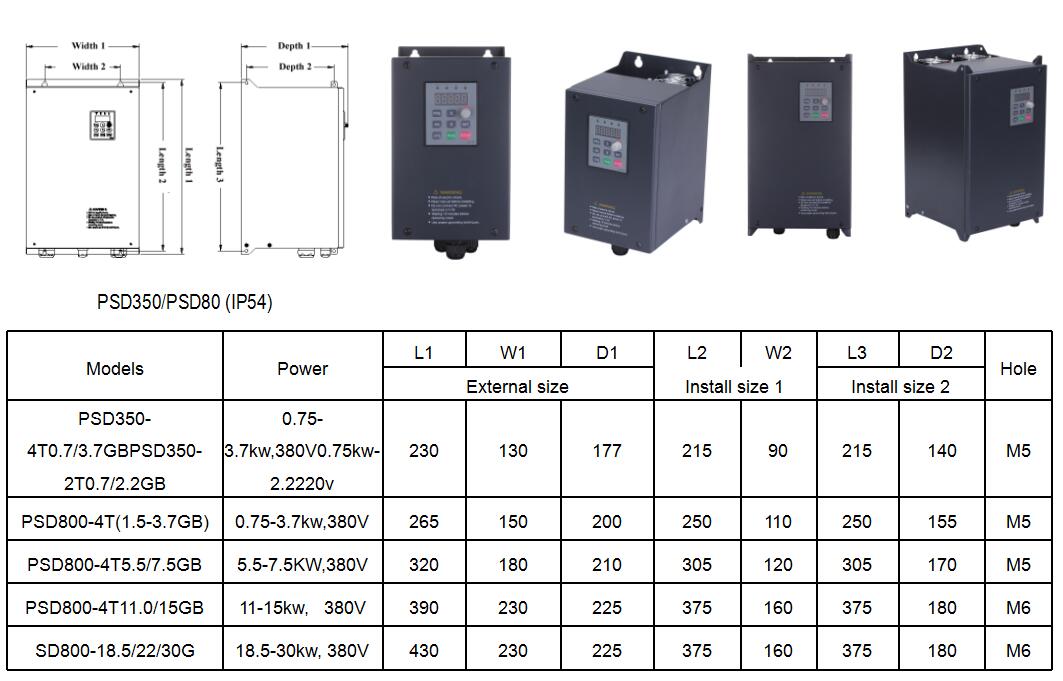

Motor type | Control for permanent magnet servo motor and asynchronous motor pumps. |
Input power | DC power from solar arrays or AC grid power |
Maximum DC power input | 400VDC for 220AC output /800VDC for 380V AC output |
Rated output voltage | 3-phase , 110V/160V/220V. 3-phase, 220V/380V/480V |
Output frequency range | 0~50/60Hz |
MPPT efficiency | 97%, |
Ambient temperature range | (G-type inverter with submersible pumps, and P type for general pumps. |
Solar pump control special performance | MPPT ( maximum power point tracking), CVT (constant voltage tracking), auto/manual operation, dry run protection, low stop frequency protection, minimum power input, motor maximum current protection, flow calculating, energy generated calculating. |
Protection function | Phase loss protection, phase short circuit protection , ground to phase circuit protection , input and output short circuit protection. Stall protection |
Protection degree | IP20, Air force cooling |
Running mode | MPPT or CVT |
Altitude | Below 1000m; above 1000m, derated 1% for every additional 100m. |
Standard | CE, Design based on vector control inverter PV800 series, more specification please refer to PV800 series vector control inverter operation manual |
PV350/800 serial solar pump inverter model list | ||||||||
SN | Models |
Rate current |
Output voltage ( 3PH VAC) |
Applicable for pumps | Packing size | MPPT voltage (VDC) | Weight(kg) | |
2S series : 150 to 400 VDC or 200 to 240VAC input, Voc 350VDC | ||||||||
1 | PV350-2T0.75GB | 4A | 220V/240V | 0.75KW | 215*170*190 | 260 to 375 | 2 | |
2 | PV350-2T1.5GB | 7A | 220V/240V | 1.5KW | 215*170*190 | 260 to 375 | 2 | |
3 | PV350-2T2.2GB | 10A | 220V/240V | 2.2kw | 215*170*190 | 260 to 375 | 2 | |
4 | PV800-2T3.7GM | 16A | 220V/240V | 3.7kw | 280*180*215 | 260 to 375 | 3 | |
4T series : 350 to 800 VDC or 380 to 460 VAC, Voc620VDC | ||||||||
4 | PV350-4T0.75GB | 2.5A | 380V-440V | 0.75KW | 215*170*190 | 486 to 750 | 2 | |
5 | PV350-4T1.5GB | 3.7A | 380V-440V | 1.5KW | 215*170*190 | 486 to 750 | 2 | |
6 | PV350-4T2.2GB | 5A | 380V-440V | 2.2KW | 215*170*190 | 486 to 750 | 2 | |
7 | PV350-4T3.7GB | 8.5A | 220V/240V | 3.7KW | 215*170*190 | 260 to 375 | 2 | |
8 | PV800-4T1.5GB | 3.7A | 220V/240V | 1.5KW | 280*180*215 | 260 to 375 | 3 | |
9 | PV800-4T2.2GB | 5A | 220V/240V | 2.2KW | 280*180*215 | 260 to 375 | 3 | |
10 | PV800-4T3.7GB | 8.5A | 220V/240V | 4.0KW | 280*180*215 | 260 to 375 | 3 | |
11 | PV800-4T5.5GB | 13A | 380V-440V | 5.5KW | 320*215*250 | 486 to 750 | 4.3 | |
12 | PV800-4T7.5GB | 16A | 380V-440V | 7.5KW | 320*215*250 | 486 to 750 | 4.5 | |
13 | PV800-4T11GB | 25A | 380V-440V | 11KW | 390*275*285 | 486 to 750 | 6.5 | |
14 | PV800-4T15GB | 32A | 380V-440V | 15KW | 390*275*285 | 486 to 750 | 7 | |
15 | PV800-4T18.5GB | 38A | 380V-440V | 18.5KW | 445*205*315 | 486 to 750 | 10 | |
16 | PV800-4T22GB | 45A | 380V-440V | 22KW | 445*205*315 | 486 to 750 | 11 | |
17 | PV800-4T30GB | 60A | 380V-440V | 30KW | 545*395*370 | 486 to 750 | 14 | |
18 | PV800-4T37GB | 75A | 380V-440V | 37KW | 660*420*415 | 486 to 750 | 16 | |
19 | PV800-4T45GB | 90A | 380V-440V | 45KW | 660*420*415 | 486 to 750 | 27 | |
20 | PV800-4T55GB | 110A | 380V-440V | 55KW | 700*480*410 | 486 to 750 | 35 | |
21 | PV800-4T75GB | 150A | 380V-440V | 75KW | 700*480*410 | 486 to 750 | 35 | |
22 | PV800-4T93GB | 170A | 380V-440V | 93KW | 700*480*490 | 486 to 750 | 45 | |
23 | PV800-4T110GB | 210A | 380V-440V | 110KW | 700*480*490 | 486 to 750 | 51 | |
25 | PV800-4T132GB | 260A | 380V-440V | 132KW | 780*540*510 | 486 to 750 | 65 | |
25 | PV800-4T160GB | 300A | 380V-440V | 160KW | 780*540*510 | 486 to 750 | 136 | |
26 | PV800-4T185GB | 340A | 380V-440V | 185KW | 1130*580*570 | 486 to 750 | 141 | |
27 | PV800-4T200GB | 380A | 380V-440V | 200KW | 1130*580*570 | 486 to 750 | 180 | |
28 | PV800-4T220GB | 415A | 380V-440V | 220KW | 1130*580*570 | 486 to 750 | 185 | |
27 | PV800-4T250GB | 470A | 380V-440V | 250KW | 1250*780*580 | 486 to 750 | 225 | |
28 | PV800-4T280GB | 510A | 380V-440V | 280KW | 1250*780*580 | 486 to 750 | 225 | |
27 | PV800-4T315GB | 600A | 380V-440V | 315KW | 1250*780*580 | 486 to 750 | 230 | |
28 | PV800-4T355GB | 670A | 380V-440V | 355KW | 1380*780*580 | 486 to 750 | 310 |
