KEWO Sun Great Series Solar Pump Drives/Inverters

Solar pump drives advantages:
Kewo sun great series solar  pump drive is positioned in environmental-friendly and economical PV market, the product is applicable to PV pumping system, replaces water storage with electric storage and needs no battery modules. The direct current generated by solar modules is input to the inverter and then converted into the alternating current to drive various pumps directly. Additionally, the output frequency is adjustable in real time according to sunlight intensity change.

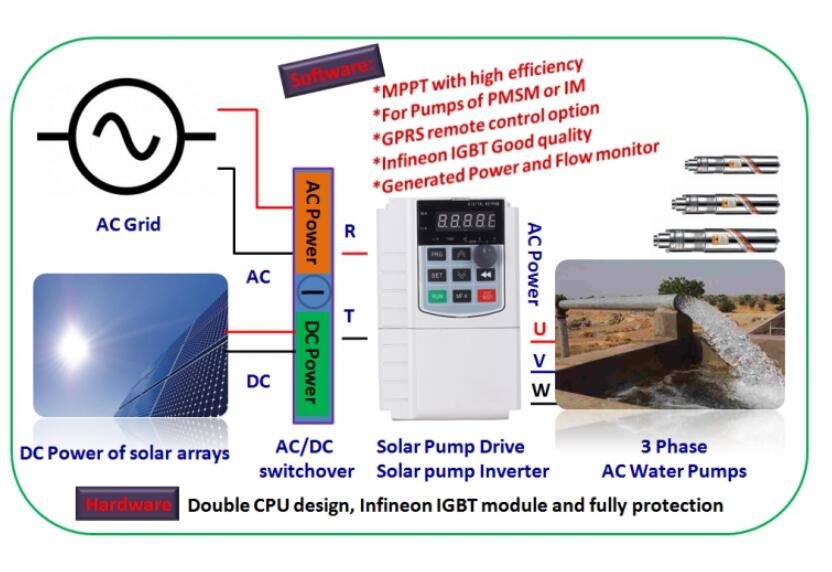

Fully automatic system using variable speed drive compatible with AC, 3-phase, submersible and surface mount pumps, and high efficiency PMSM Pumps. The system is composed of a PV generator, a pump and a solar pump drive. Based on the design philosophy that it is more efficient to store water rather than electricity, there is no energy storing device such as storage battery in the system. The system is prepared to be combined with a elevated water storage, e.g. water tower or an uphill tank installation.

Specification:
90 to 400VDC input, 110V/160V/220/240V AC output, 0.75/1.5kw.
200 to 400VDC input, 220-240VAC output, 0.75 to 3.7kw
250 to 8000VDC input, 380-480VAC output, 0.75 to 355kw
Descriptions and Features
1. Built-in MPPT function, Maximum power point tracking functionality ensures that you get the most power output possible from your solar panel and maximizes the performance of your pump throughout the day.
2. Built-in flow measurement and sensorless flow calculation.  And easy to get how much energy generated by this system with generated energy and calculating
3. Advanced function automatic start and stop of the drive when there is enough power available. ( auto/manual)
4. Multiple pump motors with a single drive control standard asynchronous motors as well as more efficient permanent magnet synchronous motors. (PMSM)
5. Best off-grid solution Where electricity is very erratic and unpredictable, farmers need not to depend on grid electricity for their agricultural requirements
6. Remote monitoring  With the addition of optional GPRS modules you can monitor and configure drive and application parameters from anywhere via Modbus RTU
7.High efficiency
Protection features
It is provide kinds of protection function for pumps and inverters such as  Dry run protection (under load protection), High voltage surge, Low input voltage, Open motor circuit, Short circuit, Over heat, Earth fault, Phase missing, lowest running, water tank level...

KEWO sun great series solar pump drive main Features

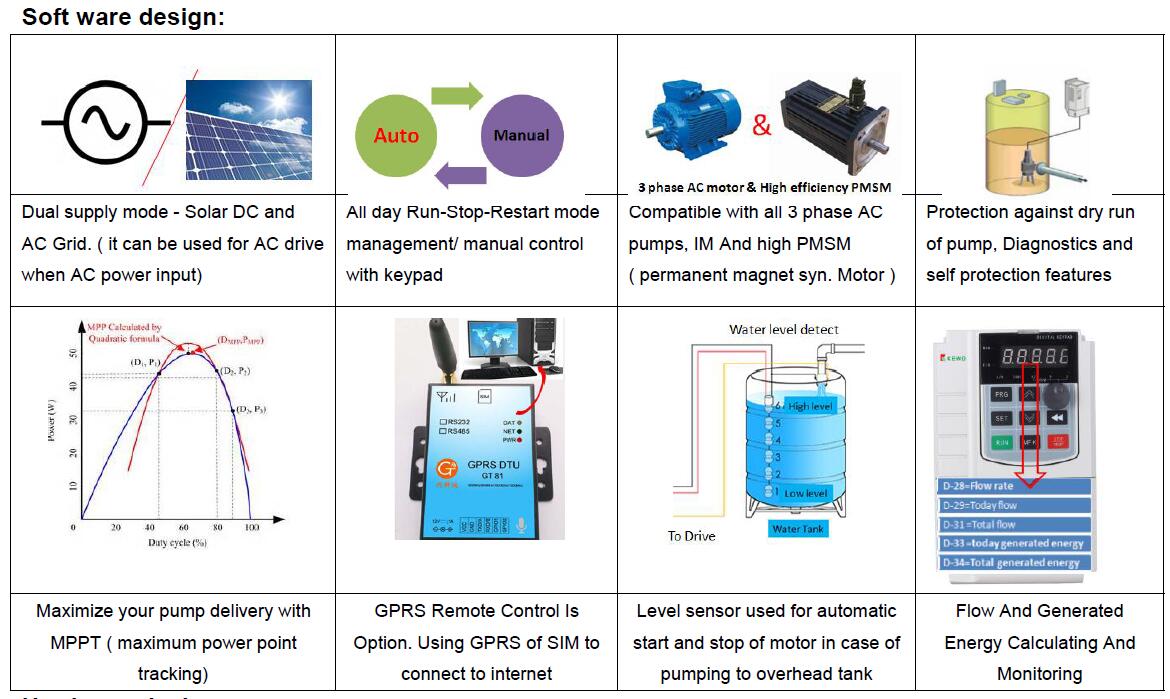

Soft ware design:

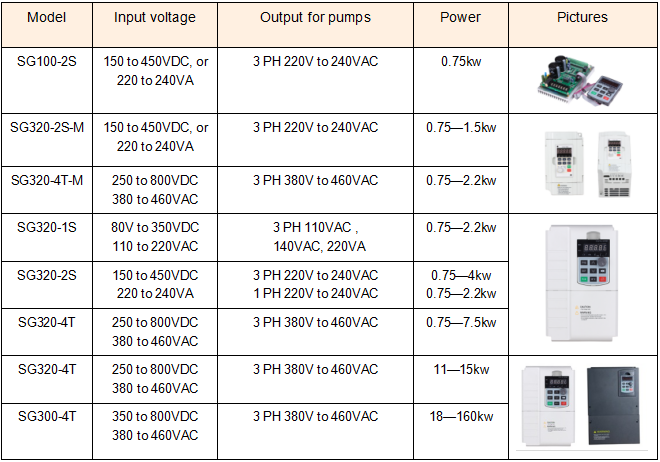

Models specification: Hardware design:


1S: For 3 phase, 110V to 200VAC pumps, 0.75kw to 1.5kw, 80V to 350VDC input.
2S: For 3 phase, 170V to 240VAC pumps, 0.75kw to 4.0kw, 150 to 450VDC input.
4T: For 3 phase, 380V to 440VAC pumps, 0.75kw to 400kw, 350 to 800VDC input.

Technical specification:

**Solar pump drive specification when FA-00 set to 1&2 for solar pumping controlling function.
Recommended MPPT voltage range	Vmpp 131 to 350 VDC for 1S (90V to 350VDC input, 3PH 110 to 220VAC output) Vmpp 280 to 375VDC for 2S ( 150V to 450VDC input, 3PH 220 to 240VAC output) Vmpp 486 to 750 VDC for 4T ( 350V to 800VDC input, 3PH 380 to 460VAC output)
Recommended input Voc and Vmpp voltage	Voc 180(VDC), Vmpp 155(VDC) for 1S model or 110V AC pumps Voc 355(VDC), Vmpp 310(VDC) for 2S model or 220V AC pumps Voc 621(VDC), Vmpp 540(VDC) for 4T model or 380V AC pumps
Motor type	Control for permanent magnet synchronous motor and asynchronous motor pumps.
Rated output voltage	3-Phase,110V/160V/220V. 3-phase, 220V/380V/460V
Output frequency range	0~maximum frequency 600Hz.
MPPT efficiency	97%,
Ambient temperature range	G-type for submersible pumps, 150% rated current for 60s, 180% rated current for 2s   P type for general pumps, 120% rated current for 60s, 150% rated current for 2s
Solar pump control special performance	MPPT ( maximum power point tracking), CVT (constant voltage tracking), auto/manual operation, dry run protection, low stop frequency protection, minimum power input, motor maximum current protection, flow calculating, energy generated calculating and water tank level detected
Protection function	Phase loss protection, phase short circuit protection, ground to phase circuit protection , input and output short circuit protection. Stall protection
Protection degree	IP20, Air force cooling
Running mode	MPPT or CVT
Altitude	Below 1000m; above 1000m, derated 1% for every additional 100m.
Standard AC input  backup circuit	CE, Design based on vector control drive S300 and S3200 series, more specification please refer to S300 or S320 vector control drive operation manual
Technical specification when it used for speed and torque controlling of motor as FA00 set to 0.
voltage, frequency	Single phase 220V, 3 phase, 220V,380V, 660V and 1140V. Power 0.75kw to 37kw.
Control mode	0: VF control ; 1: Vectorized VF control ; 2：Open loop vector control 1 ; 3: High performance open loop vector control 2
Maximum frequency	0-650Hz
Multi-functions	PID Control, Carrier Frequency Adjustable, Current Limiter, Speed Search, Momentary Power Loss Restart,16 Step Speed (Max), 3-Wire connection, Slip Compensation, Frequency Jump,  DC braking, Upper/Lower Frequency, Torque control, Compatible for PMSM and IM, built in RS485, counting, fault information checking, fully fault protection function, frequency combination reference.

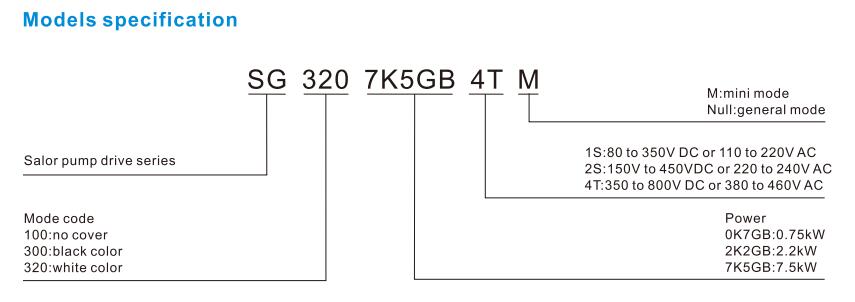

Models specification

SN	Models	Rate current	Output voltage ( 3PH VAC)	Applicable for pumps	External of drive size(mm)	MPPT voltage (VDC)	Weight (kgs)
Mini type 2S series : 150 to 400 VDC or 200 to 240VAC input, (MPPT 280 to 375VDC)
1	SG100-0K7GB-2S	4A	220V/240V	0.75KW	170*110*70	260 to 375	1.0
2	SG320-0K7GB-2S-M	4A	220V/240V	0.75KW	143*86*114	260 to 375	1.5
3	SG320-1K5GB-2S-M	7A	220V/240V	1.5KW	143*86*114	260 to 375	1.5
Mini type 4T series : 350 to 800 VDC or 380 to 440 VAC (MPPT 486 to 750VDC)
4	SG320-0K7GB-4T-M	2.5A	380V-440V	0.75KW	143*86*114	486 to 750	1.5
5	SG320-1K5GB-4T-M	3.7A	380V-440V	1.5KW	143*86*114	486 to 750	1.5
6	SG320-2K2GB-4T-M	5A	380V-440V	2.2KW	143*86*114	486 to 750	1.5
General type 2S series : 150 to 400 V DC or 200 to 240 VAC input, (MPPT 280 to 375VDC)
7	SG320-0K7GB-2S	4A	220V/240V	0.75KW	185*125*159	260 to 375	2.0
8	SG320-1K5GB-2S	7A	220V/240V	1.5KW	185*125*159	260 to 375	2.0
9	SG320-2K2GB-2S	10A	220V/240V	2.2KW	185*125*159	260 to 375	2.5
10	SG320-4K0GB-2S	16A	220V/240V	4.0KW	245*150*177	260 to 375	3.5
General type 4T series : 350 to 800 VDC or 380 to 440VAC input, (MPPT 486 to 750VDC)
11	SG320-0K7GB-4T	2.5A	380V-440V	0.75KW	185*125*159	486 to 750	2
12	SG320-1K5GB-4T	3.7A	380V-440V	1.5KW	185*125*159	486 to 750	2
13	SG320-2K2GB-4T	5A	380V-440V	2.2KW	185*125*159	486 to 750	2
14	SG320-4K0GB-4T	10A	380V-440V	4.0KW	185*125*159	486 to 750	2.5
15	SG320-5K5GB-4T	13A	380V-440V	5.5KW	245*150*177	486 to 750	3.5
16	SG320-7K5GB-4T	17A	380V-440V	7.5KW	245*150*177	486 to 750	4
17	SG320-011GB-4T	22A	380V-440V	11KW	247*160*178	486 to 750	5
18	SG320-015GB-4T	30A	380V-440V	15KW	247*160*178	486 to 750	5
19	SG300-018GB-4T	37A	380V-440V	18KW	335*217*190	486 to 750	10
20	SG300-022GB-4T	45A	380V-440V	22KW	335*217*190	486 to 750	18
21	SG300-030GB-4T	60A	380V-440V	30KW	432*285*225	486 to 750	18
22	SG300-037GB-4T	75A	380V-440V	37KW	432*285*225	486 to 750	29
23	SG300-045GB-4T	90A	380V-440V	45KW	600*385*270	486 to 750	29
24	SG300-055GB-4T	110A	380V-440V	55KW	600*385*270	486 to 750	29
25	SG300-075GB-4T	150A	380V-440V	75KW	700*473*307	486 to 750	43
26	SG300-090GB-4T	180A	380V-440V	90KW	700*473*307	486 to 750	47
27	SG300-110GB-4T	220A	380V-440V	110KW	930*579*375	486 to 750	90
28	SG300-132GB-4T	260A	380V-440V	132KW	930*579*375	486 to 750	100
29	SG300-160GB-4T	320A	380V-440V	160kw	930*579*375	86 to 750	130

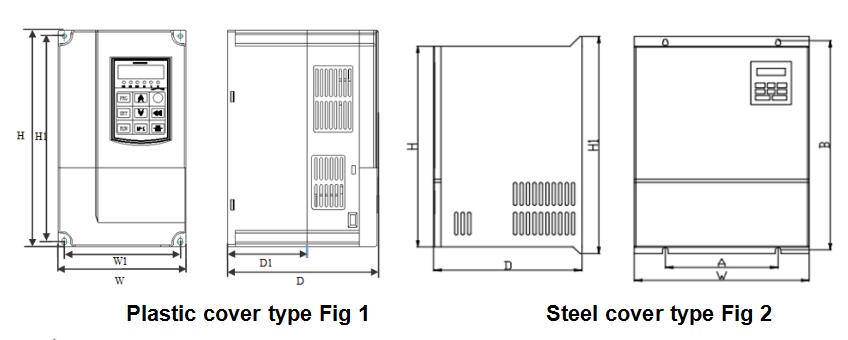

SG300 /SG320 series solar pump drive dimensions

Power	H	H1	W	W1	D	D1	Hole
0.4~1.5KW	143	132	86	74	114	62.5	Ø4.5

Power (3 phase 380V output)	H	H1	W	W1	D	D1	Hole
0.75~4KW	185	173	125	115	159	79	Ø5
5.5~7.5KW	244	232	150	136	176.5	93	Ø5
11kw -15kw	247	235	160	147	178	101	Ø5

\

Power (3 phase 380V output)	Inverter size				Install size/ hole
	W	H1	H	D	A	B	Hole
SG300-018GB-4T	217	335	305	150	140	323	Ф6
SG300-022GB-4T
SG300-030GB-4T	285	463	432	225	235	447	Ф8
SG300-037GB-4T
SG300-045GB-4T	385	600	550	270	260	580	Ф10
SG300-055GB-4T
SG300-075GB-4T	473	700	660	307	343	678	ф10
SG300-90GB-4T
SG300-110GB-4T	579	930	880	375	449	905	ф10
SG300-132GB-4T
SG300-160GB-4T
185kw to 280kw (option)	650	1060	983	377	420	1030	ф12
315kw to 500kw (option)	800	1358	1203	400	520	1300	ф14

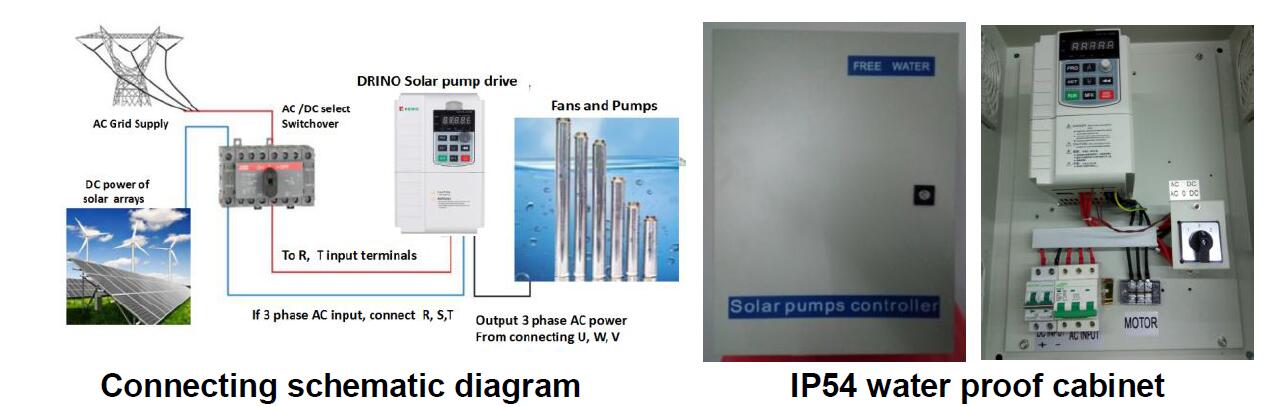

System connection and commissioning.
An enhanced version of KEWO motor AC Drive( variable speed drive of motor speed and torque control), compatible with DC power and AC grid input.
Note*: Only allow one power source input at a time.
1. Connect DC power Positive ( P ) and Negative ( N ) terminals to input R, T terminals of drive.
2. Connect output U, V, W terminals of drive to 3 phase AC pumps. ( No driving for  DC pumps and Single AC pumps).
3.Connect water level sensor to drive if need water tank level detecting.
4.Connect remote controller GPRS module ( option) if need remote monitor controlling function. (option )
5. IP54 solar pump drive cabinet customization make is available including( AC/DC switchover, AC and DC breaker..), or IP54 module also is available.
PS: In built AC/DC manual switch, AC/DC circuit breaker, pumps connection terminals in cabinet.


Easy installation and commissioning.
1.Dc voltage of solar arrays in serials need large than 1.15 times of Vmpp of drives.
For example: For 4T series, recommend 540V*1.15=621V; For 2S series, recommend 311*1.15=357V. (Voc)
2.The selecting power of solar arrays need large than 1.3 times power of total pumps.
For example, 0.9kw above for 0.75kw pumps, 2.86kw above for 2.2kw pumps.

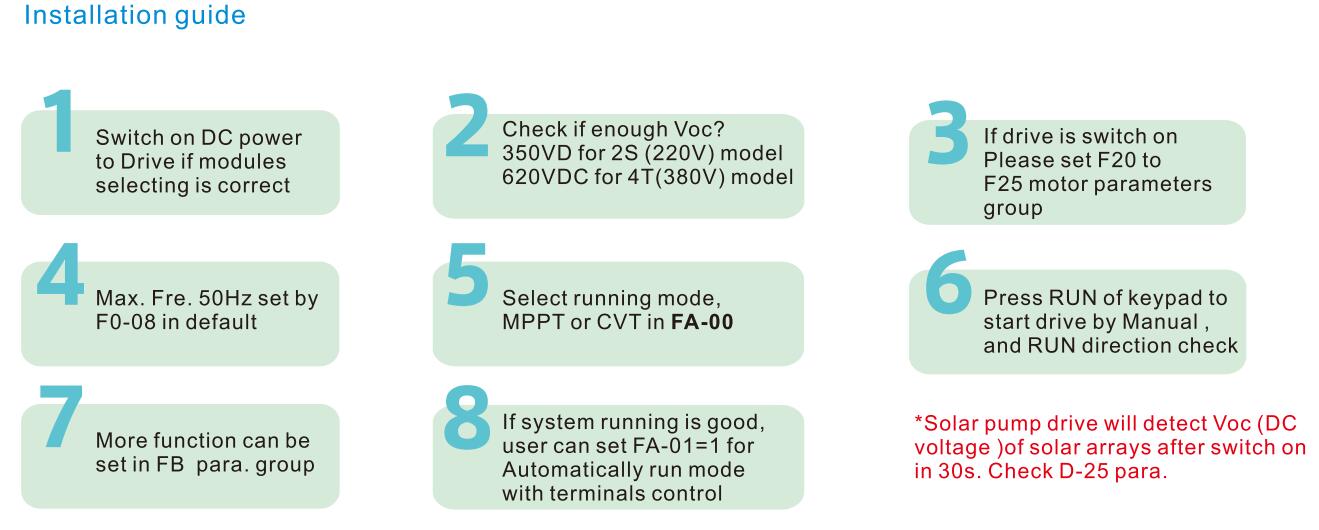

3.Commissioning steps.( Please wait 30s after switching on for Voc detecting by iverter itself.)

Applications examples

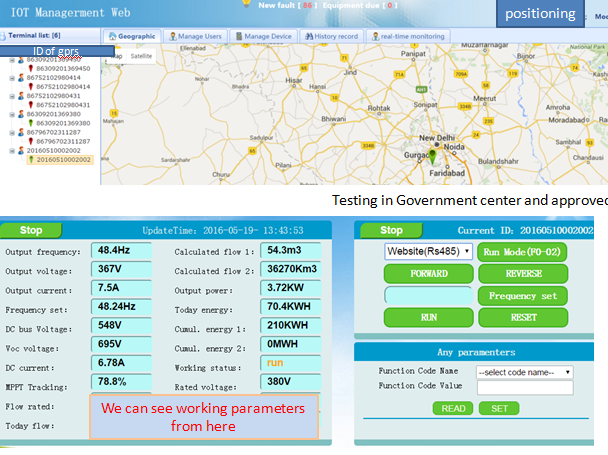

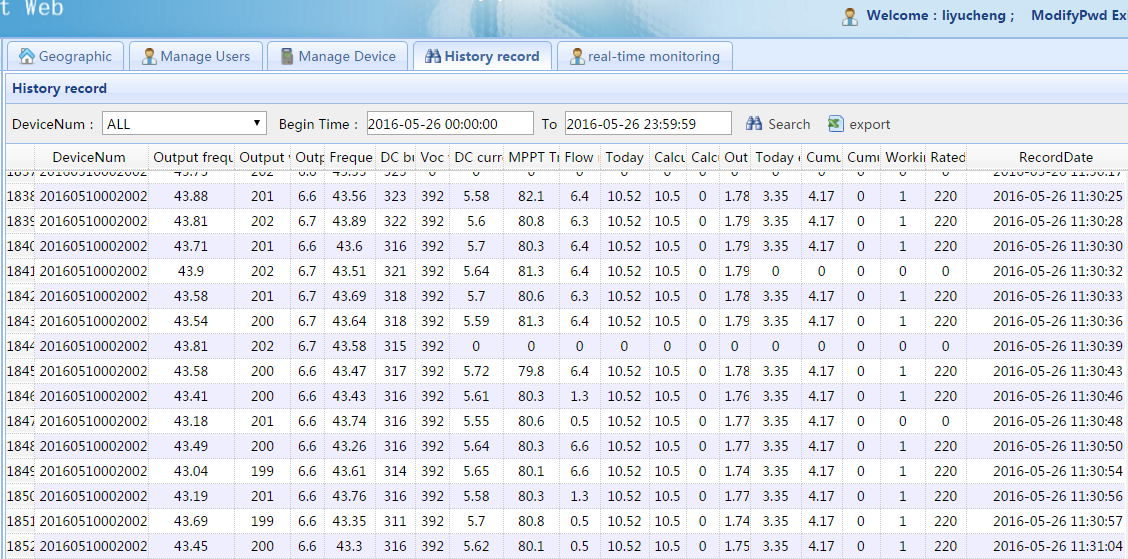

GPRS remote morning and control


If you need more detail please feel free contact us.www.kewoinverter.com
