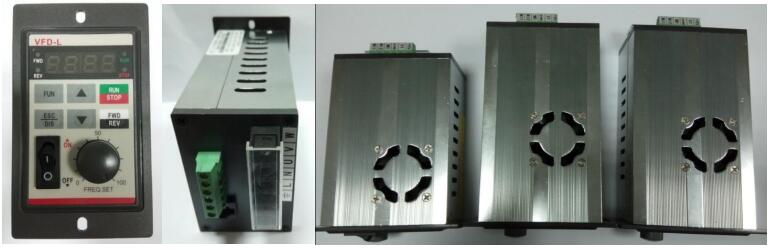

AD110 Simple & small variable frequency drive
AD110 small VFD is a new and innovation small, economical type and stable running variable frequency inverter.
It is focus on small power 100w to 750w 3 phase 200-240V small motor speed control.
 It can provides basic function of general purpose inverter that own, such as soft start, soft stop, speed adjusting, start/stop by external terminals, speed control by analog, running in revere...etc.
We make the cost of this VFD down to limit with great power innovation technology.
And make every piece of 3 phase 220V smaller power motor with VFD control is available with low cost.

1. Specification of AD110 small and economical type 1PH, 220V input, 3 phase output VFD
Model		AD110-2S0.1G	AD110-2S0.2G	AD110-2S0.4G	AD110-2S0.75G
Output	Rated output power	100w	200w	400w	750w
	Rated output current	0.8A	1.0A	2.0A	3.8A
	Overload tolerance	150% rated current for 60s
	Max output voltage	3 phase 240V
Input	Rated input voltage	single phase 200- 240VAC
	Voltage Tolerance	Single phase 180 -250VAC
	Frequency accurace	±5%
	Power capacity	0.8 KVA
Cooling Method		Nature Air- Cooling
Consumption wattage		15w -25w

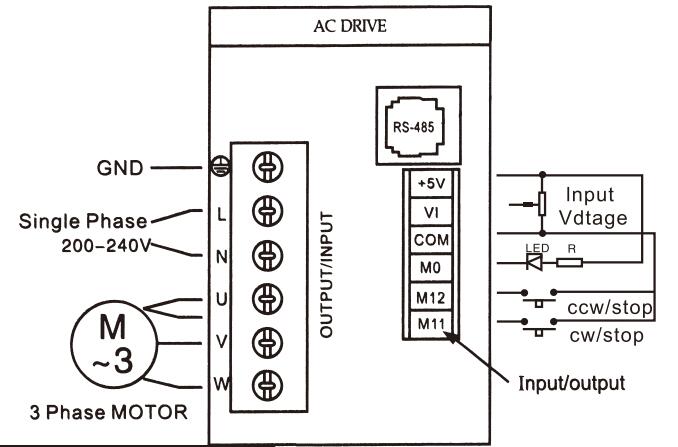

2. Basic Wiring Diagram

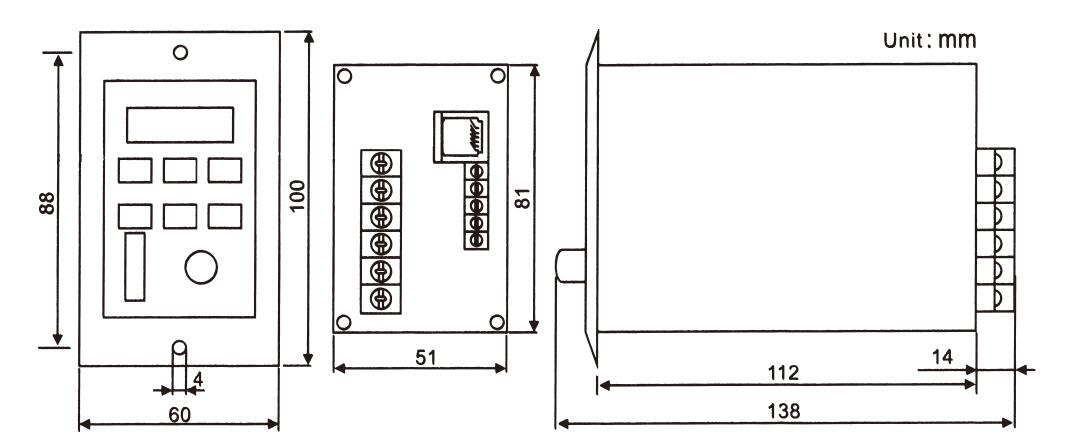

 3. Installation and Dimensions

 400w, 750w power VFD length is 170mm
4. Using conditions of AD110 VFD

Using conditions of AD110 VFD
Operation conditions	Ambient Temperature	-10℃ to 50℃
	Relative Humidity	< 85% ( no condensation Allowed)
	Atmosphere pressure	86 to 105Kpa
	Installation Site Altitude	<1000m
	Vibration	<20Hz
Storage Transportation conditions	Air Temperature	-10℃ to 60℃
	Ambient Humidity	< 90% ( no condensation allowed)
	Vibration	<20Hz
Pollution Degree	2 Class: good for factory type environment

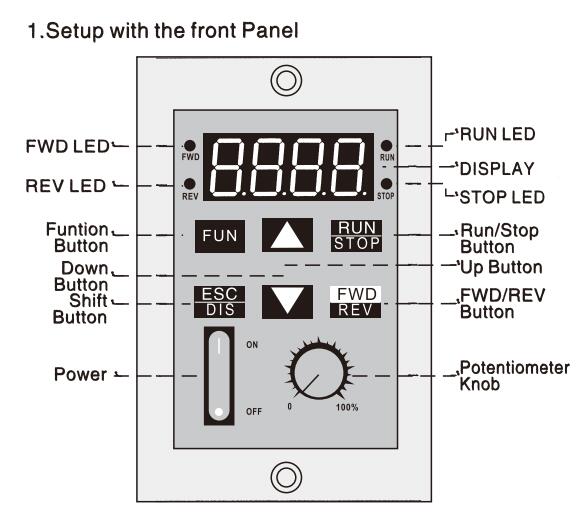

5. Setup with the front panel

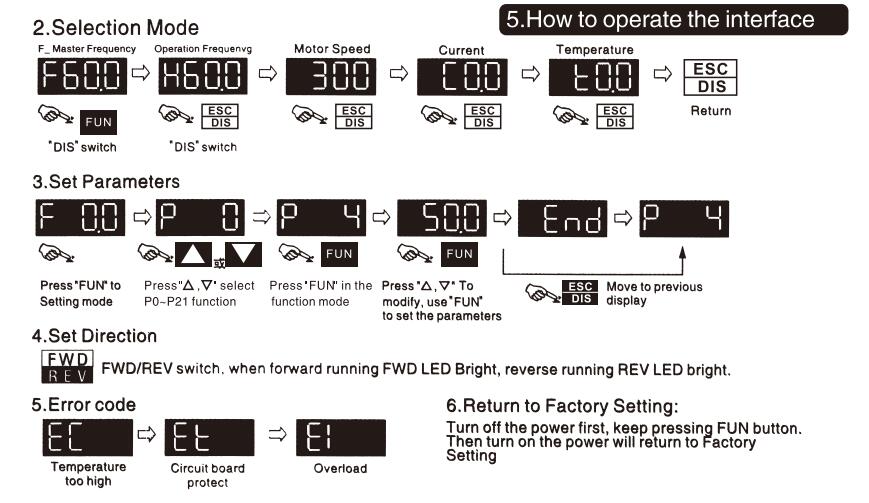

6. Operation guide of keypad

7. Summary of parameters settings of AD110 VFDs

Parameter	explanation	settings	Factory setting
P00	Frequency reference	0 ~ 99Hz ( unit: 0.5Hz)
P01	source of frequency command	0: Interface keypad control 1: Interface Potentiometer 2：exterior potentiometer 3:Rs485	1
P02	Run/stop of operation command	0:interface keypad control 1:Rs485 2:Forward running while power input 3:Reverse Running while power input 4:Exterior input	0
P03	Stop method	0: Cost stop   1: Ramp stop   2: Brake stop	1
P04	Max output frequency	0 ~ 100Hz	65Hz
P05	Min Output frequency	0 ~ 100Hz	5Hz

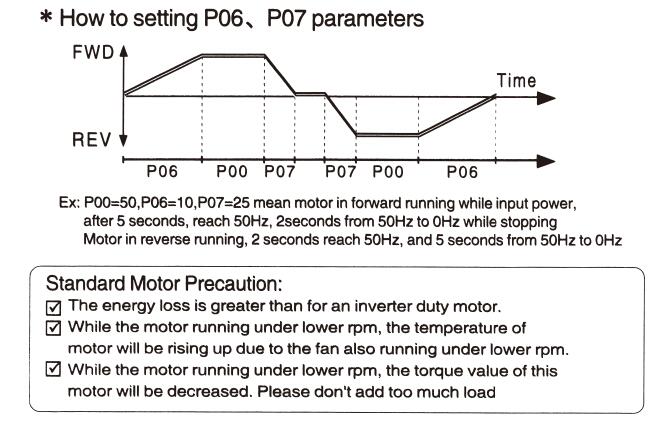

P06	Acceleration time	0 ~ 250Hz/sec	50Hz/sec
P07	Deceleration time	0 ~ 250Hz/sec	50Hz/sec
P08	Brake lead time	0 ~3 sec	0.3 sec
P09	Brake value	0~ 60%	20%%
P10	3Hz VF value	0 ~ 50%	4%
P11	50Hz	0 ~ 99%	98%
P12	Rs485 frame ASCII	0:7E1  1:7O1  2:8N2   3:8E1  4:8O1	20%%
P13	Rs485 protocol	0:4800       1:19200 2：9600      3: 38400	1
P14	Communication address	1 ~ 255	1
P15	MI mode selection	0: MI1 FWD/stop, MI2 REV/STop 1: MI1 RUN/stop, MI2 FWD/REV 2:MI1 RUN/Stop, MI2 Multiple-stop speed	0
P16	MO mode selection	0: Running indication 1: Max output frequency arrive 2: Fault indication	0
P17	Multiple -step speed command	P04~p05	50
P18	Frequency arrive frequency	P04~p05	50
P19	overload tolerance	1 ~ 100%	50%
P20	Temperature  tolerance	1℃ ~80℃	80℃
P21	Speed proportion	0.25 ~100	1


 Note:

 If you need more powerful function and multiple function variable speed drive, please get more information from AD100/AD350 and AD800.
And we also provide AS850 enhanced version VFD AC servo drive for simple position control, torque control, syn. Speed control for PMSM and IM.
