AD100 mini frequncy inverter

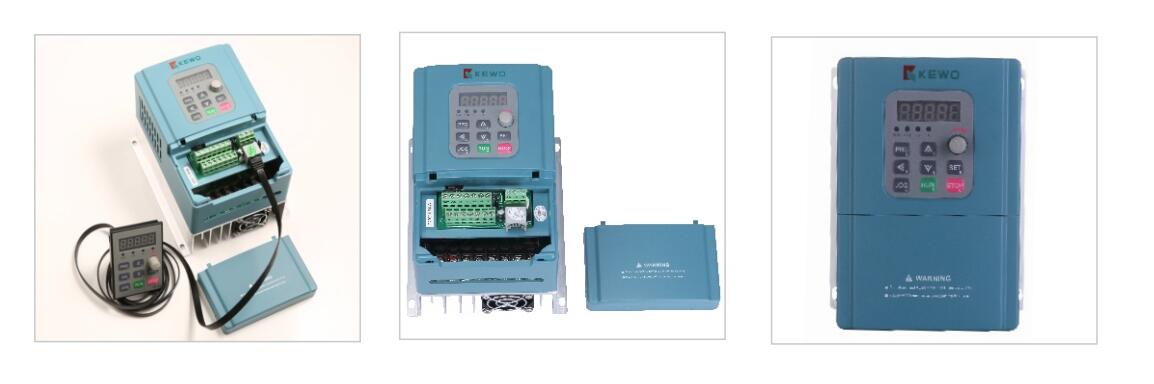

AD100 Mini Frequency Inverter.
AD100 is a small and economical type frequency inverter, which designed for small machine OEM general purpose application. The good performance of V/F control mode, multiple segment speed, flexible and accuracy PID, DC braking function, ModBus communication, that will make you machine become powerful and improving his competitive edge.
Power range: 0.4 to 1.5kw
Input voltage: single phase 220V ±15%
Control mode: V/f control indefualt, sensorless vector control is option
Protection function: Provide up to 25 kinds fault protection, over current, over voltage, under voltage, phase missing, overload protection function
Cooling method: force cooling
Installation method: wall mount, IP20Power range: 0.4 to 1.5kw
Input voltage: single phase 220V ±15%
Control mode: V/f control indefualt, sensorless vector control is option
Protection function: Provide up to 25 kinds fault protection, over current, over voltage, under voltage, phase missing, overload protection function
Cooling method: force cooling
IPM iGBT using

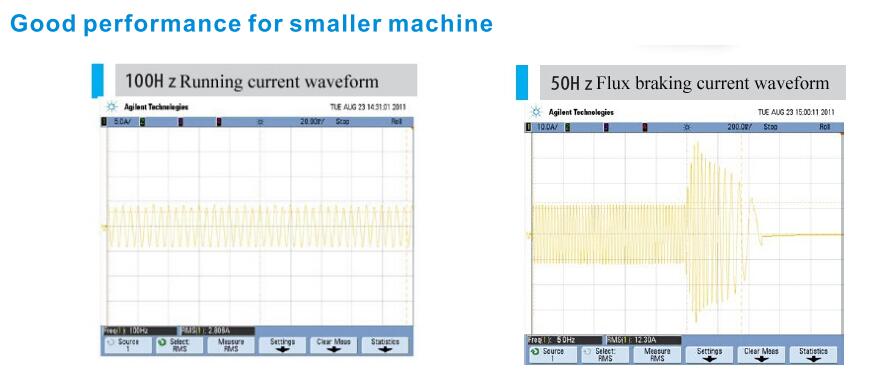

Good performance for smaller machine.

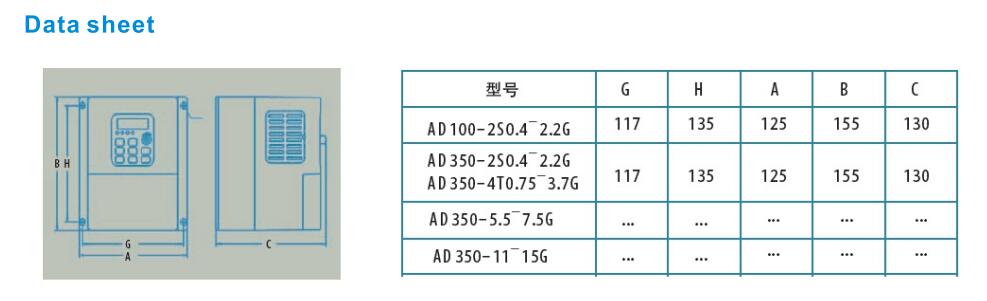

Data sheet (Dimension and size)

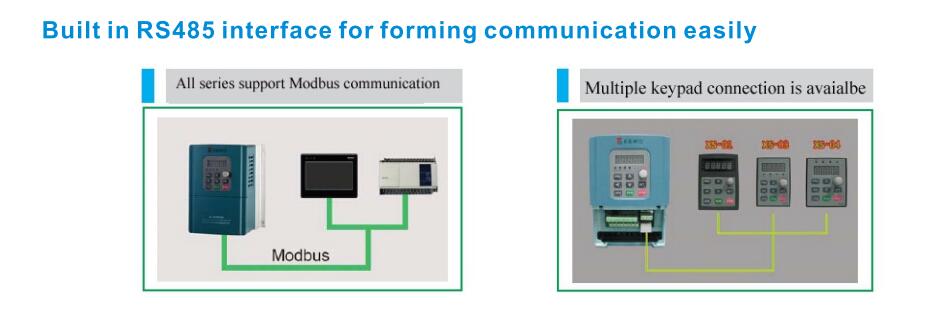

Built in Rs485 interface for forming communication easily.

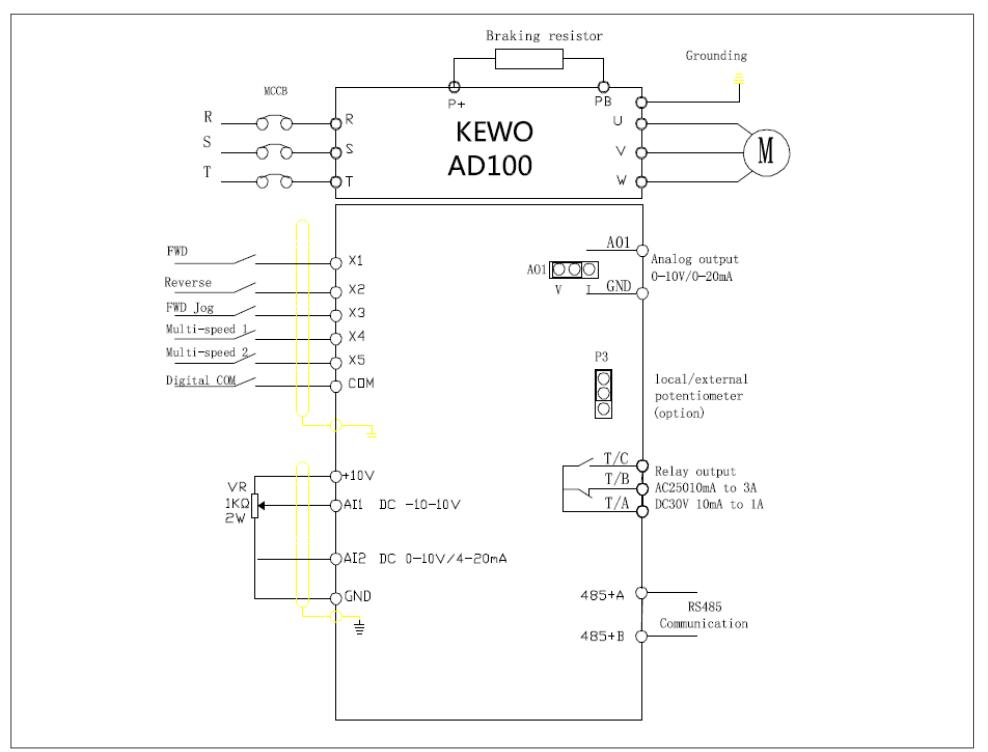

Wiring diagram
It has 5 digital input, DI5 can use for high pulse train inut.
2 analog signal input,
1 analog output and
1 relay output.
Terminals diagram:
