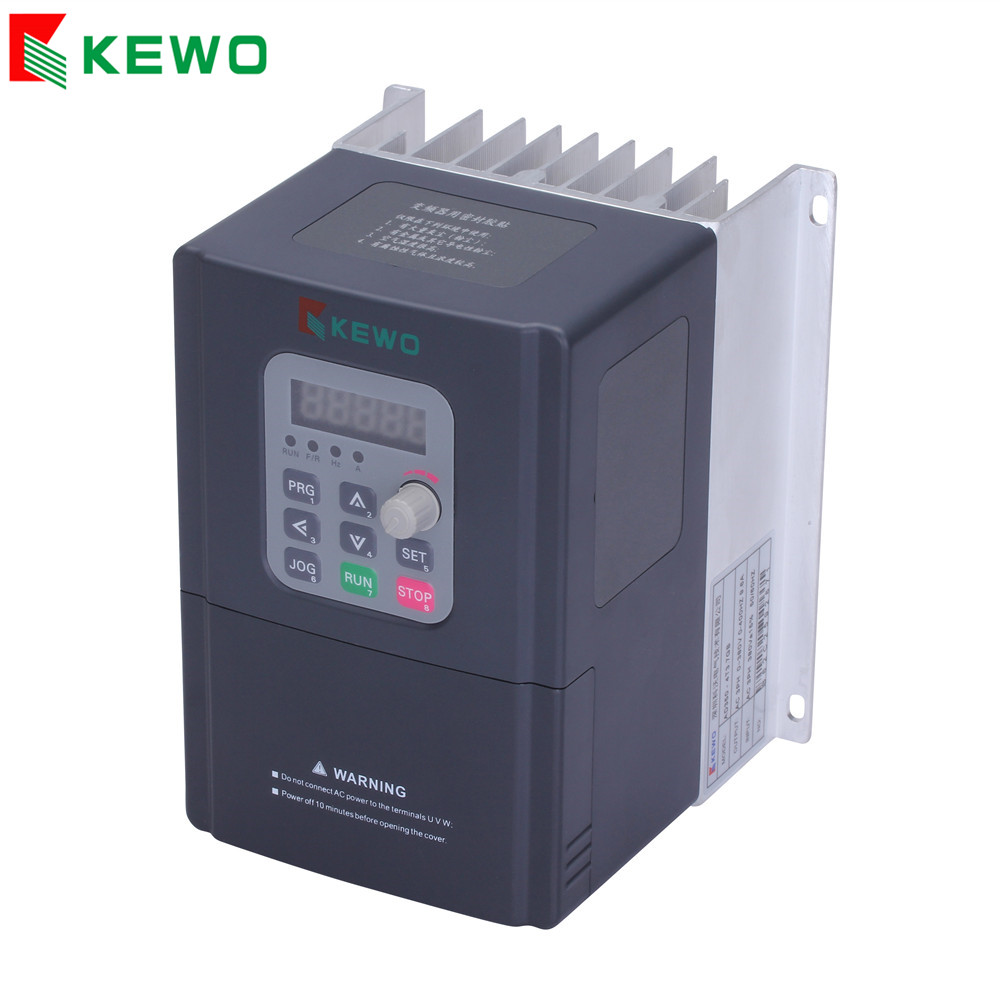

KEWO AD350 Series High Performance Vector Control Inverter used in wood machine

AD350 high performance vector control mini frequency inverter is KEWO independently developed new generation general purpose electrical motor controller, which adopt the same software platform as AD800.

With a new generation of high-performance advanced vector control technology applying, high torque control even under low speed, high speed precision, quick torque response and high speed range are available for sophisticated notor control.

It is featured to have modular design, small size, small temperature rise, low noise, and reliable performance. It has built in simple PLC, PID adjusting, programmable input and output terminals fuction, RS458 terminals, multi function analog input and output function. ect.

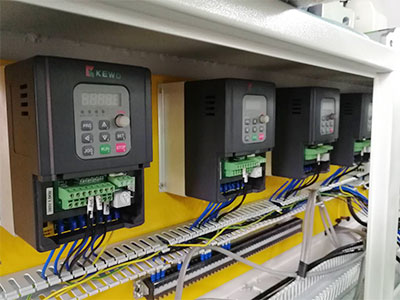

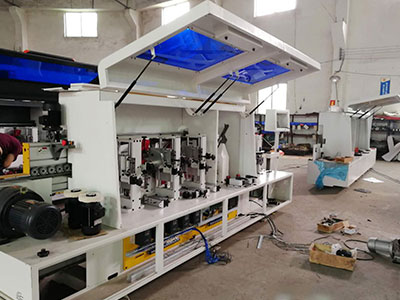

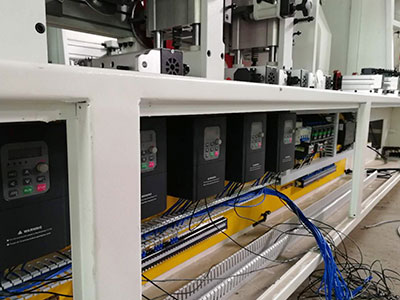

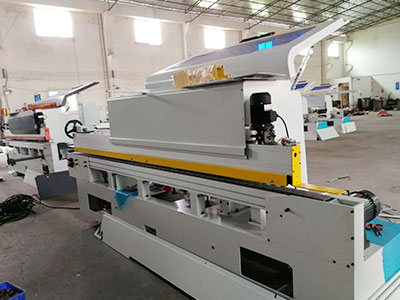

Here are KEWO AD350 Series high performance vector control inverter were used in wood machine case



KEWO AD350 Series high performance vector control inverter specification

Power range: 2S 0.4 to 2.2kw, 4T 0.75 to 3.7kw.

Input voltage: Single phase 220V, 3 phase 380V ±15%

Control mode: Sensorless vector control without PG, V/f control

Protection function: Provide up to 25 kinds fault protection, over current, over voltage, under voltage, phase missing, overload protection function

Cooling method: Force cooling

Installation method: Wall mount

Infineon iGBT module



The advantaqge AD350 frequency inverter used in wood machine

      *You can set the operating frequency according to the required work rate.

      *Run and Stop keys

      *Ensure safety in the event of an instantaneous power failure

      *Low noise

      *High torque from startup to the rated spped.
